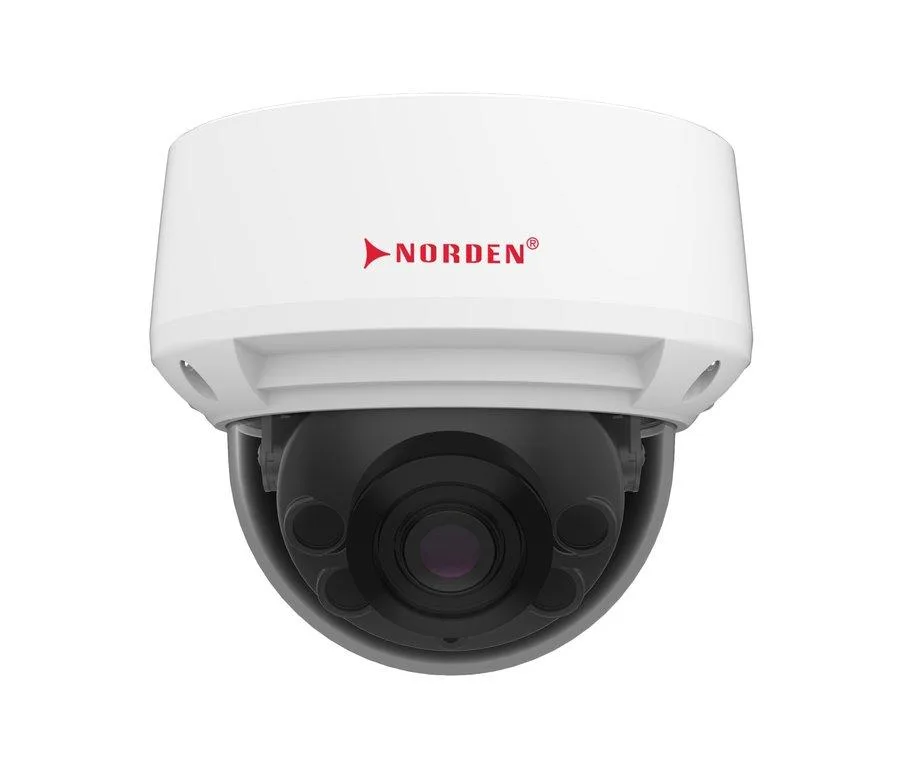

Norden Motorized Dome 5MP
ENV-HVD8M-40R-59NDAA
- resolution
- 5MP
- lens
- 2.7-13.5 mm motorized
- IR
- 40 m
- rating
- IP66 · IK10
Rp14,884,000Rp16,521,240per unit, excluding 11% VAT (PPN)per unit, including 11% VAT (PPN) · 5-year warranty
Key features
- 2.7 ~ 13.5 mm Motorized Lens
- Smart IR up to 40 m
- ONVIF Profile (S, G, T, M)
- Triple Stream
- Audio and Alarm Support
- PoE, IP66, IK10
Full specifications
From the Norden datasheet, version 3.7. Technical values are written as in the datasheet, and rows that do not apply to this model are left out.
Camera
- Image Sensor
- 1/2.7" CMOS Progressive 5.0 MegaPixel
- Day / Night
- IR Cut Filter with Auto Switch
- Lens Type
- Motorized
- Digital Zoom
- 16x
- Focus
- Auto / Manual
- Iris Type
- Fixed Iris
- Focal Length
- 2.7 ~ 13.5 mm
- Angle of View (H)
- 102.3° ~ 33.1°
- Angle of View (V)
- 54.3° ~ 18.5°
- Angle of View (D)
- 115.8° ~ 37.9°
- Angle Adjustment
- Pan 0 ~ 355°, Tilt 0 ~ 75°, Rotate 0 ~ 355°
- Aperture
- F1.6 ~ F3.1
- Electronic Shutter
- 1s ~ 1/100,000s, Auto / Manual
- Min. Illumination
- Color: 0.01 lux @ F1.6, B/W: 0 lux with IR
- AGC
- Auto / Manual
- Digital Noise Reduction
- 2D & 3D DNR, Auto / Manual
- S/N Ratio
- ≥55 dB
- Defog
- Smart Defog
- WDR
- 120 dB
- Smart IR
- Up to 40 m
- Wavelength
- 850 nm
DORI distances
- Lens
- 2.7 ~ 13.5 mm
- Detection
- 80.0 ~ 208.0 m
- Observation
- 32.0 ~ 83.2 m
- Recognition
- 16.0 ~ 8.0 m
- Identification
- 8.0 ~ 20.8 m
Video
- Max. Resolution
- 2592×1944
- Video Compression
- Enhanced (H.265, H.264), H.265, H.264, MJPEG
- Frame Rate
- Main Stream: (2592×1944, 2592×1520)@ 25/30fps, (1920×1080, 1280×720) @50/60fps Sub Stream: (1920×1080, 1280×720, 704×576) @25/30fps Third Stream: (640×480, 352×288, 320×240, 176×144) @25/30fps
- Stream Settings
- i-Frame, PAL/NTSC, Frame Rate
- Video Bit Rate
- 100 kbps ~ 12 Mbps
- Bitrate Type
- CBR, VBR
- Image Settings
- Brightness, Contrast, Saturation, Sharpness, Day/Night, Flip/Mirror/Rotation, Multiple Scene & Profile
- White Balance
- Auto, Day/Night, Tungsten, Manual
- Corridor Mode
- Supported
- HLC
- Supported
- BLC
- Supported
- OSD
- Up to 8 regions
- OSD Type
- Title, Week, Date, Time, Text with different colors and adaptable sizes, Image overlay
- ROI
- Up to 8 regions
- Privacy Mask
- Up to 4 regions
Audio
- Audio Compression
- G.711A, G.711U, RAW_PCM
- Audio Bit Rate
- 64 kbps, 128 kbps
- Audio I/O
- 1/1
- Built-in Mic
- Supported
Analytics
- Behavior Detection
- Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire)
- Intelligent Identification
- Loitering
- Statistical Analysis
- Face Detection (Capture), People Counting, Human & Vehicle Detection, Abnormal Audio Detection, Wrong Way Detection, Illegal Parking
- Alarm Management
- Motion Detection, Input & Output Event, Network Alarm, Disk Alarm, Day Night Switch Alarm, Abnormal Audio Alarm, Pre/Post Alarm Recording, Alarm Recording/Snapshot
- Alarm Notifications
- E-mail (Notification and Snapshot), HTTP (Alarm Icon), FTP (Snapshot and Recording), SD Card (Recording)
Network and interfaces
- Protocols
- TCP/IP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, 802.1X, Unicast, Multicast, QoS, ARP, SNMP, SSL/TLS1.2, RTMP (Optional)
- Security
- AES 128/256 Encryption, IP Filter, User Authentication (Multiple Privilege Level), 802.1X Authentication (EAP-MD5), HTTPS Authentication, RTSP Authentication, Digest Authentication, User Access Log
- Compatibility
- ONVIF Profile (S, G, T, M), SDK/CGI
- Network
- 1 x RJ45 10M/100M Self Adaptive Ethernet Port
- Alarm I/O
- 1/1
- Edge Storage
- Micro SD Card Slot, up to 512 GB
- ANR
- Supported
- Max. Users
- 32
- Client Application
- EyeGuard
General
- Power Supply
- 12V DC , PoE (IEEE 802.3af)
- Max. Power Consumption
- ≤6W (IR ON), ≤2.5 W (IR OFF)
- Working Temperature
- -30°C ~ 65°C
- Working Humidity
- ≤90% RH (non-condensing)
- Ingress Protection
- IP66
- Vandal Resistant
- IK10
- Surge Protection
- TVS4000V
- Reset Button
- Supported
- Dimensions
- Φ130 × 113 mm
- Net Weight
- 0.75 Kg
Before you order
- 01Prices are per unit and exclude 11% VAT (PPN).
- 02Shipping is calculated in the quote based on the destination city.
- 03Every model has a 5-year warranty.
- 04Prices may change at any time. The final price is the one in our written quote.
Request a CCTV quote
Code ENV-HVD8M-40R-59 is already filled in on the form. Add the number of units and the delivery city, and our team replies during business hours with a written quote.
business hours · monday to friday, 09:00 to 16:00 wib
