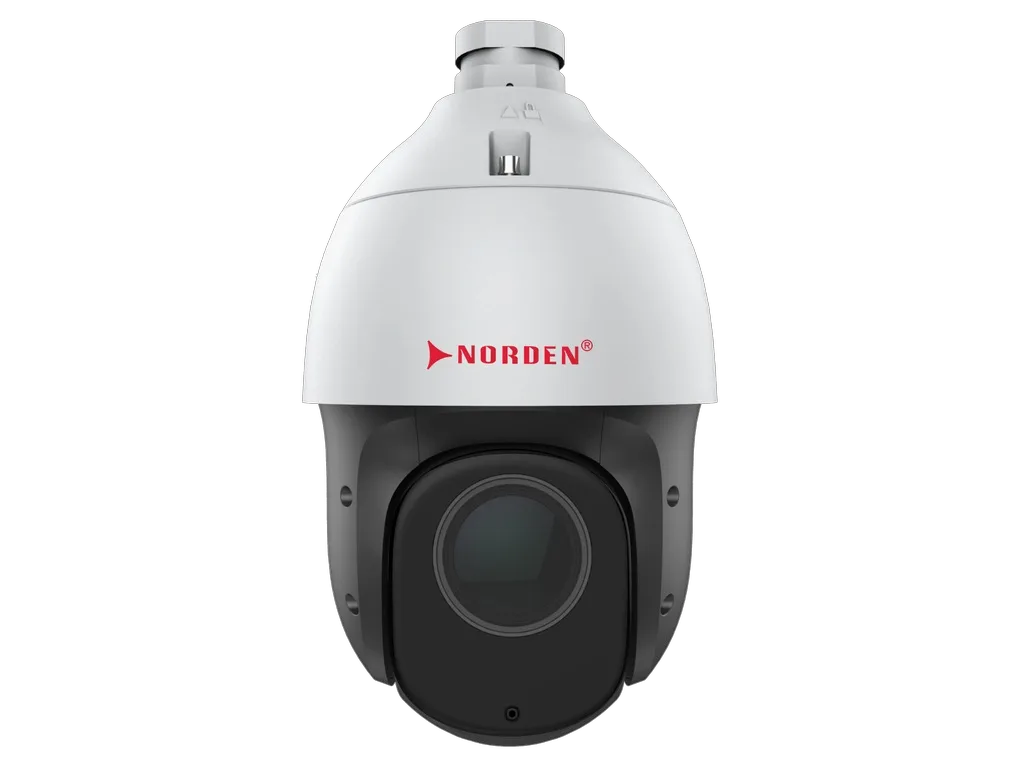

Norden PTZ Dome 2MP
ENV-HPT5Z-150R-90NDAA
- resolution
- 2MP
- lens
- 25x optical zoom
- IR
- 150 m
- rating
- IP67 · IK10
Rp40,935,000Rp45,437,850per unit, excluding 11% VAT (PPN)per unit, including 11% VAT (PPN) · 5-year warranty
Key features
- 25X Optical Zoom
- Smart IR up to 150 m
- ONVIF Profile (S, G, T, M)
- Triple Stream
- Audio and Alarm Support
- PoE+, IP67
DORI distances
How far this camera can still detect a person, observe what they are doing, recognise someone you know and confirm who they are. Use these figures to plan mounting points.
- Detection
- 68.2 to 1,630 m
- Observation
- 26.7 to 657 m
- Recognition
- 13.7 to 325.8 m
- Identification
- 6.9 to 162.9 m
widest setting (wide)full zoom (tele)
Figures from the Norden datasheet. About the DORI terms
Full specifications
From the Norden datasheet, version 3.9. Technical values are written as in the datasheet, and rows that do not apply to this model are left out.
Camera
- Image Sensor
- 1/2.8" CMOS Progressive 2.0 MegaPixel
- Day / Night
- Dual IR Cut Filter with Auto Switch
- Lens Type
- Motorized Zoom Lens
- Focal Length
- 4.5 ~ 112.5 mm (Optional 4.8 ~ 120 mm)
- Focus
- Auto / Semi Auto / Manual
- Iris Type
- P Iris, Auto/ Manual
- Angle of View (H)
- 64.4° ~ 2.7° (Optional 58.5° ~ 2.8°)
- Angle of View (V)
- 41.8° ~ 1.7° (Optional 33.2° ~ 1.5°)
- Angle of View (D)
- 76.5° ~ 3.2° (Optional 67.2° ~ 3.1°)
- Aperture
- F1.5 ~ F3.8
- Optical Zoom
- 25X
- Digital Zoom
- 16X
- Zoom Speed
- <5s
- Electronic Shutter
- 1s ~ 1/100,000s, Auto/Manual
- Min. Illumination
- Color: 0.001 lux @ F1.5, B/W: 0 lux with IR
- AGC
- Auto / Manual
- Digital Noise Reduction
- 3D DNR, Auto / Manual
- S/N Ratio
- ≥60 dB
- Defog
- Smart Defog
- WDR
- 120 dB
- Smart IR
- Up to 150 m
- IR LEDs
- 6
- Wavelength
- 850 nm
DORI distances
- Lens
- 4.5 ~ 112.5 mm (Optional 4.8 ~ 120 mm)
- Detection
- 68.2 ~ 1630.0 m (Optional 72.5 ~ 1759 m)
- Observation
- 26.7 ~ 657.0 m (Optional 28.6 ~ 709.7 m)
- Recognition
- 13.7 ~ 325.8 m (Optional 13.5 ~ 352.2 m)
- Identification
- 6.9 ~ 162.9 m (Optional 5.8 ~ 175.0 m)
Video
- Max. Resolution
- 1920×1080
- Video Compression
- Enhanced (H.265, H.264), H.265, H.264, MJPEG
- Frame Rate
- Main Stream: (1920×1080, 1280×720, 704×480, 640×480) @ 30fps, (1920×1080, 1280×720, 704×576, 640×480) @ 25fps Sub Stream: (704×480, 704×240, 640×360, 352×240) @ 30fps, (704×576, 704×288, 640×360, 352×288) @ 25fps Third Stream: (352×240) @ 30fps, (352×288) @ 25fps
- Stream Settings
- i-Frame, PAL/NTSC, Frame Rate
- EIS
- Supported
- Video Bit Rate
- 32 kbps ~ 16 Mbps
- Bitrate Type
- CBR, VBR
- Image Settings
- Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night
- White Balance
- Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual
- HLC
- Supported
- BLC
- Supported
- OSD
- Up to 5 regions
- OSD Type
- Title, Week, Date, Time, Text with Different Colors and Adaptable Sizes (16×16, 24×24, 32×32, 48×48, 64×64), Image overlay
- ROI
- Up to 7 regions
- Privacy Mask
- Up to 24 regions
Audio
- Audio Compression
- G.711A, G.711U, ADPCM_D, AAC_LC
- Audio Bit Rate
- 8 kbps, 32 kbps, 48 kbps
- Audio I/O
- 1/1
- Audio Voltage
- Audio input, level 2.0~2.4V, Input Impedance 1 Kohms; Audio Output Impedance 600 ohms
Analytics
- Behavior Detection
- Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire)
- Intelligent Identification
- Abandoned Object (Object Left), Missing Object (Object Lost)
- Statistical Analysis
- Abnormal Video & Audio Detection, People Counting, Human and Vehicle Classification
- Alarm Management
- Motion Detection, Tampering (Masking), IP Address Conflict, Pre/Post Alarm Recording, Alarm Recording/Snapshot
- Alarm Notifications
- E-mail (Notification and Snapshot), HTTP (Alarm Icon ), FTP (Snapshot and Recording), SD Card (Recording)
Network and interfaces
- Protocols
- TCP/IP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, PPPoE, NTP, UPnP, SMTP, SSL, TLS1.2, IGMP, QoS, 802.1x, Unicast, Multicast, ARP, SNMP, SFTP, P2P
- Security
- AES 128 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), HTTPS Authentication, Digest Authentication, User Access Log
- Compatibility
- ONVIF Profile (S, G, T, M), SDK/API/CGI
- Network
- 1 x RJ45 10M/100M Self Adaptive Ethernet Port
- Alarm I/O
- 1/1
- Alarm Voltage
- Input (switch type) , Output (≤24V DC, Current ≤1A)
- Edge Storage
- Micro SD Card Slot, Up to 512 GB
- ANR
- Supported
- Built-in Fan
- Supported
- Cable Interface
- Pig Tail
- Remote Connection
- ≤7
- Max. Users
- 32
- Web Language
- 15
- Client Application
- EyeConnect
Pan and tilt
- Pan Range
- 0°~360° (Endless)
- Pan Speed
- Pan Manual Speed: 0.1°/s ~ 200°/s, Pan Preset Speed: 240°/s
- Tilt Range
- -16° ~ 90° (Auto flip)
- Tilt Speed
- Tilt Manual Speed: 0.1°/s ~ 120°/s, Tilt Preset Speed: 180°/s
- Preset Accuracy
- ±0.4°
- Number of Presets
- 500
- 3D Position
- Supported
- Power off Recovery
- Supported
- PTZ Mode
- 8 Scan, 16 Tour (32 presets per Tour)
- Pattern
- 8 (each with 600s memory or 1000 orders)
General
- Power Supply
- 12V DC, PoE+ (IEEE 802.3at)
- Max. Power Consumption
- ≤22 W (IR ON), ≤9 W (IR OFF)
- Working Temperature
- -40° ~ 70°C
- Working Humidity
- ≤95% RH (non-condensing)
- Casing
- Metal
- Ingress Protection
- IP67
- Vandal Resistant
- IK10 (Housing)
- Surge Protection
- TVS6000V
- Reset Button
- Supported
- Dimensions
- Φ161×276 mm
- Net Weight
- 3 kg
