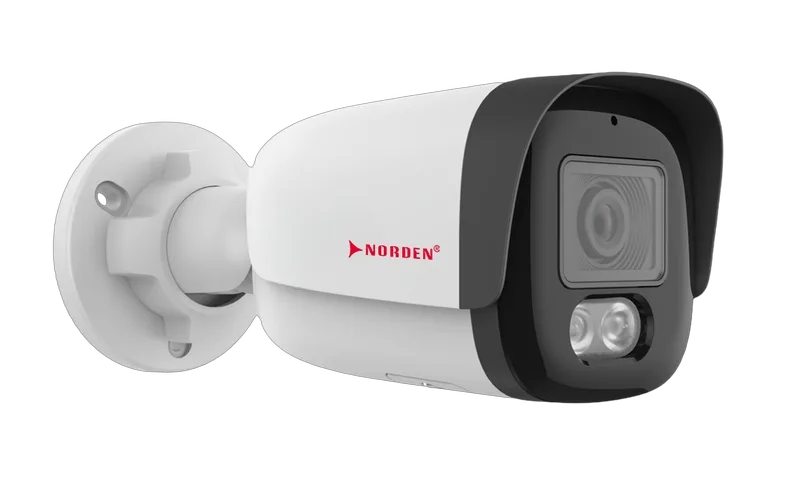

Norden Fixed Bullet 2MP
ENV-HCB5F-30R-89NDAA
- resolution
- 2MP
- lens
- 4 mm fixed
- IR
- 30 m, up to 50 m
- rating
- IP67 · IK10
Rp5,789,000Rp6,425,790per unit, excluding 11% VAT (PPN)per unit, including 11% VAT (PPN) · 5-year warranty
Key features
- 4 mm Fixed Lens
- Smart IR up to 30 m (Upgradable to 50 m)
- ONVIF Profile (S, G, T)
- Built-in Mic
- PoE, IP67
DORI distances
How far this camera can still detect a person, observe what they are doing, recognise someone you know and confirm who they are. Use these figures to plan mounting points.
- Detection
- 55.1 m
- Observation
- 21.8 m
- Recognition
- 11 m
- Identification
- 5.5 m
Figures from the Norden datasheet. About the DORI terms
Full specifications
From the Norden datasheet, version 3.8. Technical values are written as in the datasheet, and rows that do not apply to this model are left out.
Camera
- Image Sensor
- 1/2.7" CMOS Progressive 2.0 MegaPixel
- Day / Night
- Dual IR Cut Filter with Auto Switch
- Lens Type
- Fixed
- Focal Length
- 4 mm
- Focus
- Fixed
- Iris Type
- Fixed Iris
- Lens Mount
- M12
- Angle of View (H)
- 84.8°
- Angle of View (V)
- 44.0°
- Angle of View (D)
- 99.7°
- Angle Adjustment
- Bracket; Pan: 0~360°, Tilt: 0~90°, Rotate: 0~360°
- Aperture
- F1.6
- Electronic Shutter
- 1s ~ 1/100,000s, Auto/Manual
- Min. Illumination
- Color: 0.001 lux @ F1.6, B/W: 0 lux with IR
- AGC
- Auto / Manual
- Digital Noise Reduction
- 3D DNR
- S/N Ratio
- ≥60 dB
- Defog
- Smart Defog
- WDR
- 120 dB
- Smart IR
- Up to 30 m (Upgradable to 50 m)
- IR LEDs
- 2
- Illumination Distance
- Up to 15 m
- White LEDs
- 2
- Wavelength
- 850 nm
DORI distances
- Lens
- 4 mm
- Detection
- 55.1 m
- Observation
- 21.8 m
- Recognition
- 11.0 m
- Identification
- 5.5 m
Video
- Max. Resolution
- 1920x1080
- Video Compression
- Enhanced (H.265, H.246), H.265, H.264
- Frame Rate
- Main Stream: (1920×1080, 1280×720, 704×480) @ 30fps, (1920×1080, 1280×720, 704×576) @ 25fps Sub Stream: (704×480, 704×240, 640×360, 352×240) @ 30fps, (704×576, 704×288, 640×360, 352×288) @ 25fps
- Stream Settings
- i-Frame, PAL/NTSC, Frame Rate (1~30fps)
- Video Bit Rate
- 32 kbps ~ 6 Mbps
- Bitrate Type
- CBR, VBR
- Image Settings
- Brightness, Contrast, Saturation, Hue, Sharpness, Rotation/Mirror, Gain, Exposure, Day/Night
- White Balance
- Auto, Semi Auto, Sunshine, Daylight, Warm Light, Filament, Nature Light, Lock WB, Manual
- HLC
- Supported
- BLC
- Supported
- OSD
- Up to 1 regions
- OSD Type
- Title, Week, Date, Time, Text with different colors and adaptable sizes (16×16, 32×32, 48×48)
- ROI
- Up to 8 regions
- Privacy Mask
- Up to 4 regions
Audio
- Audio Compression
- G.711A, G.711U, ADPCM_D
- Audio Bit Rate
- 8 kbps, 32kbps, 48 kbps
- Built-in Mic
- Supported with noise cancellation
Analytics
- Behavior Detection
- Intrusion (Perimeter), Crossline (Tripwire)
- Statistical Analysis
- Human & Vehicle Detection
- Alarm Management
- Motion Detection, Tampering (Masking), IP Address Conflict, Disk Alarm (Full & R/W Error)
Network and interfaces
- Protocols
- TCP/IP, UDP, IPv4, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, P2P, Unicast, ARP, QoS
- Security
- AES 128 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level)
- Compatibility
- ONVIF Profile (S, G, T), SDK/API/CGI
- Network
- 1 x RJ45 10M/100M Self Adaptive Ethernet Port
- Edge Storage
- Micro SD Card Slot, Up to 512 GB
- ANR
- Supported
- Cable Interface
- Pig Tail
- Remote Connection
- ≤2
- Max. Users
- 32
- Web Language
- 15
- Client Application
- EyeConnect
General
- Power Supply
- 12V DC, PoE (802.3af)
- Max. Power Consumption
- ≤6 W (12V DC), ≤8 W (PoE)
- Working Temperature
- -45 °C ~ 65 °C
- Working Humidity
- ≤95% RH (non-condensing)
- Ingress Protection
- IP67
- Vandal Resistant
- IK10 (Housing)
- Surge Protection
- TVS4000V
- Reset Button
- Supported
- Dimensions
- 161×68x66 mm
- Net Weight
- 0.52 kg
Before you order
- 01Prices are per unit and exclude 11% VAT (PPN).
- 02Shipping is calculated in the quote based on the destination city.
- 03Every model has a 5-year warranty.
- 04Prices may change at any time. The final price is the one in our written quote.
Request a CCTV quote
Code ENV-HCB5F-30R-89 is already filled in on the form. Add the number of units and the delivery city, and our team replies during business hours with a written quote.
business hours · monday to friday, 09:00 to 16:00 wib
